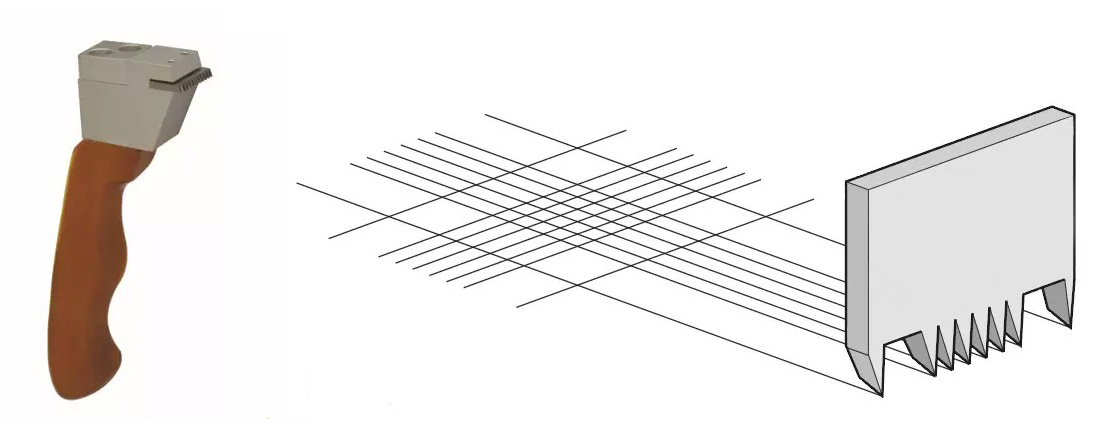

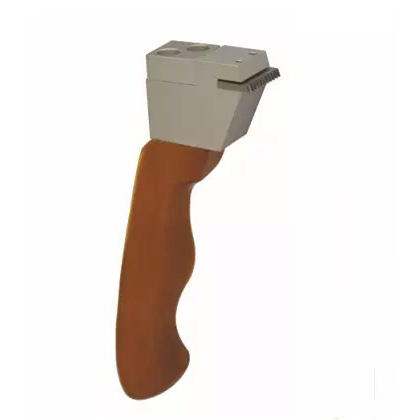

Single Cross Hatch Cutter Kit
The cutting head is a single-sided cutting blade, which is economical and practical.
Also known as a single blade or single piece reticle.
Standard
GB/T 9286
ASTM D 3359
ISO 2409
Technical Parameter
Order Number | No. of Cutting Teeth | Tooth Spacing | Blade Width | Handle Material |
PS 2651/1 | 11 | 1mm | 20mm | Hardwood |
PS 2651/2 | 11 | 2mm | 20mm | Hardwood |
PS 2651/1/1 | 11 | 1mm | 20mm | Hardwood (set) |
PS 2651/2/1 | 11 | 2mm | 20mm | Hardwood (set) |
Each single blade grid cutter contains 2 blade heads, and the set includes a brush, 3M tape, and a magnifying glass.
Shipping List
Single Cross Hatch Cutter Kit, Instructions
